Cuckoo Sandbox Installation and Setup Guide

#

Cuckoo Sandbox is a powerful open-source malware analysis system written in Python (compatible with Python 2.7). It creates a virtualized sandbox environment to safely execute and analyze suspicious files, making it an essential tool for malware researchers, penetration testers, and cybersecurity professionals.

By running malware inside an isolated Windows virtual machine (VM), Cuckoo collects comprehensive telemetry and forensic data, including:

• Network traffic analysis
• Process creation and injection
• Registry changes
• File system modifications
• Behavioral indicators of compromise

This guide explains how to set up Cuckoo Sandbox on Ubuntu 18.04 using VMware/VirtualBox and integrate it with a Windows 7/10 VM for dynamic malware analysis.

Host Machine Specifications

#

For reference, here’s the host machine used in this setup:

1. OS: Windows 11 Home 64-bit
2. CPU: Intel i5-13420H (8 Cores)
3. RAM: 16 GB
4. Storage: 512 GB SSD
5. GPU: RTX 4050 (4GB)

Pre-requisites

#

Before installing Cuckoo, make sure you have the following:

1. Virtualization software (VMware or VirtualBox).
2. Ubuntu 18.04 ISO (supports Python 2.7 natively). Download from releases.ubuntu.com.
3. CPU with VT-x (Intel) or AMD-V (AMD) virtualization support enabled in BIOS.
4. On Windows 11 host:

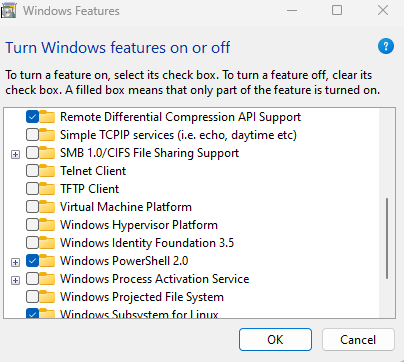

   • Disable Hyper-V, Virtual Machine Platform, and Windows Hypervisor Platform.

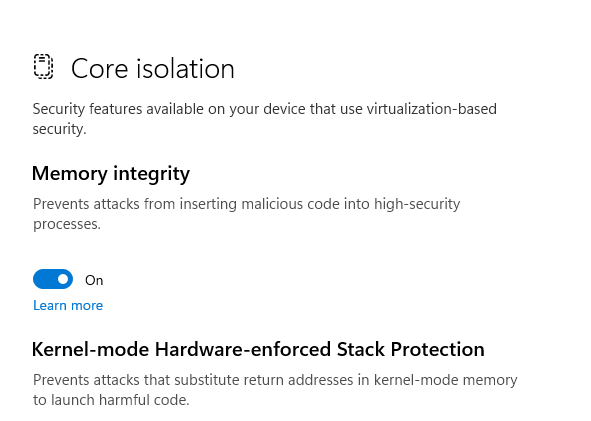

   • Disable Core Isolation → Memory Integrity for compatibility.
   • Restart after disabling.
   • Reference screenshot:



Step 1–11: Installation & Setup

#

(Detailed steps included above in installation guide — Ubuntu setup, Python 2.7 installation, VirtualBox, dependencies, VM preparation, and configuration files.)

Step 11: Run Cuckoo Sandbox

#

Open 3 terminals and activate venv:

workon cuckoo-test
Terminal 1: cuckoo rooter --sudo --group <username>

Terminal 2: cuckoo

Terminal 3: cuckoo web --host 127.0.0.1 --port 8080

• Now visit http://127.0.0.1:8080 to access the Cuckoo Web Interface.

Troubleshooting Cuckoo Sandbox

#

Setting up Cuckoo Sandbox on Ubuntu can lead to common errors. Below are frequent issues and their fixes:

1. m2crypto installation failed

Cause: Incorrect version of m2crypto for Python 2.7.

Fix: Install the supported version:

sudo -H pip2 install m2crypto==0.31.0

2. VM is not reachable (Connection Refused)

Cause: Misconfigured VirtualBox host-only adapter (vboxnet0).

Fix:

sudo ip addr add 192.168.56.1/24 dev vboxnet0
sudo ifconfig vboxnet0 up

Ensure the VM’s IP (e.g., 192.168.56.101) matches in virtualbox.conf.

3. ResultServer not reachable

Cause: Wrong ResultServer IP or firewall blocking connection.

Fix:

Set resultserver_ip = 192.168.56.1 in virtualbox.conf.

Allow traffic:

sudo ufw allow 2042/tcp

4. No network traffic captured

Cause: tcpdump not running with correct privileges.

Fix:

Ensure you added your user to pcap group:

sudo usermod -a -G pcap <username>

Check tcpdump capabilities:

getcap /usr/sbin/tcpdump

5. Cuckoo Web UI not loading

Cause: Port 8080 in use or firewall blocking.

Fix:

sudo lsof -i :8080
sudo fuser -k 8080/tcp
cuckoo web --host 127.0.0.1 --port 8080

6. VirtualBox kernel driver not installed (rc=-1908)

Cause: Kernel upgrade broke VirtualBox.

Fix: Rebuild drivers:

sudo apt-get install --reinstall virtualbox-dkms
sudo modprobe vboxdrv

Final Notes

#

• Submit malware samples, URLs, or hashes for automated analysis.

• View results including network traffic logs, dropped files, process trees, and behavioral signatures.

• For scalability, integrate with Elasticsearch, MISP, or Splunk for advanced threat hunting.

Conclusion

#

• This guide provided a complete walkthrough to install and configure Cuckoo Sandbox on Ubuntu with VirtualBox.

• With this setup, you can safely analyze malware in an isolated sandbox environment and gather actionable insights into malicious behavior.

• Cuckoo remains one of the most reliable open-source dynamic malware analysis platforms, widely used in cybersecurity research labs, SOC teams, and incident response operations.
